StageTek® Staging

SKU#:

StageTek® Staging

A portable stage and riser system that's strong, versatile and easy to set up

Everything about StageTek® is an advancement. The refined, smart design is the result of extensive research, engineering and technical advancements in materials and manufacturing. The result is a staging system that is lighter, stronger, easier to handle and faster to set up. When it comes to stretching your investment across multiple needs like seated risers and performance stages, StageTek sets a new standard. For unlimited flexibility, extra legs can be stored on the underside of your deck. We made the legs strong, simple and inexpensive. Compare Wenger's newest advancement in staging to any other option and see for yourself why StageTek is a better all-around platform.

StageTek® Outdoor Staging is a great option for all your outdoor events and performances. Learn more here.

View/Download Available Riser Layouts



The Wenger Advantage

  • Maximum Flexibility – Simple, economical, plug-in legs make hundreds of configurations possible to meet all your needs.
  • Strength & Stability – Among the highest load ratings of comparable systems based on the three most important load ratings.
  • Fast, Easy, Intuitive – Anyone can set up StageTek in minutes. No tools needed.
  • Safer – Higher load ratings in a deck that's 20% lighter. Only StageTek gives you rounded edges for a comfortable powergrip (75% stronger than a pinch grip). This helps save backs, fingers and toes.
  • Less Storage – Save as much as 50% in storage space with our easy moving storage and transport cart. Legs can store in the decks keeping parts nearby for the next setup.
  • Durable and Repairable – The lack of any folding connections in StageTek's design eliminates the source of loose parts, noisy rattles and failures. StageTek's simple, solid design has a best-in-class warranty and parts designed for easy replacement.


Usage

For facilities that require multiple stage setups/configurations for a mix of different performance events.



Storage

Staging Universal Deck & Rail Cart



Additional Information



Downloadable Riser Layouts







Construction

  •  StageTek Load Ratings as measured on a 4' x 8' (1219 x 2438 mm) Rectangular Deck:
    • Standard Uniform Live Load for decks with 4 legs: 125 lbf/sq ft (6 kN/sq m), meets L/75 deflection criteria
    • Heavy Duty Uniform Live Load for decks with 5th leg (as needed or smaller deck): 150 lbf/sq ft (7.2 kN/sq m), meets L/180 deflection criteria
    • Heavy Duty Uniform Live Load for decks with no 5th leg, added stiffener(s): 150 lbf/sq ft (7.2 kN/sq m), meets L/180 deflection criteria
    • Lateral Live Side Load: 12 lbf/sq ft (0.6 kN/sq m) based on deck top surface area, meets IBC code
    • Caster Load: 300 lb (136 kg) applied via 2" (51 mm) diameter by 2" (51 mm) wide flat rubber wheel with no appreciable surface deformation
    • Concentrated Load: 500 lb (227 mm) on a single 6" x 6" (152 x 152 mm) square area per deck
  •  Easy-to-handle sections have lightweight aircraft-grade aluminum frames are fabricated from 4” (102 mm) thick aluminum extrusion
  •  Platform Decks are 3/4” (19 mm) thick and constructed of Group I veneer plywood with a protective laminate on both sides
  •  Five attractive finish options:
    standard black, heavy-duty black, natural hardboard, grey carpet, or carpet-ready

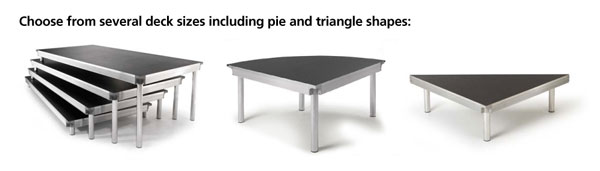

  •  Standard deck sizes:
    3′ x 3′ (914 x 914 mm); 3′ x 6′ (914 x 1829 mm); 3′ x 8′ (914 x 2438 mm); 4′ x 4′ (1219 x 1219 mm); 4′ x 6′ (1219 x 1829 mm); 4′ x 8′ (1219 x 2438 mm)
    Non-standard sizes are available
  •  Standard legs are fabricated from 2-1/2" (64 mm) diameter aluminum extrusions and are finished with non-marring cap
    Available in lengths that result in the following deck heights:
    8" (203 mm), 16" (406 mm), 24" (610 mm), 32" (813 mm) and 40" (1016 mm)
  •  Adjustable telescopic legs feature a threaded leveling foot finished with a rubber pad and non-rattling telescopic adjustment secured with a quick-release pin
    Available in lengths that result in the following deck heights:
    16"-28" (406-711 mm), 24"-40" (610-1016 mm) and 30"-54" (762-1372 mm)
  •  Custom leg sizes are available
  •  Ten-year warranty

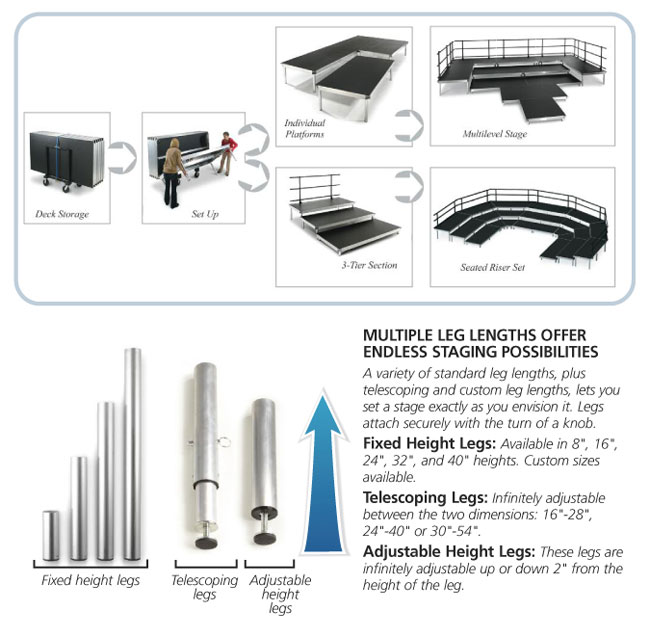

Leg Options

  • Available leg options include fixed height, adjustable height and telescopic.
  • Standard rectangular decks have four die cast aluminum leg sockets. Legs are quickly secured without tools by just rotating the knob.
  • Standard legs are fabricated from 2½" (64 mm) diameter aluminum extrusions and are finished with non-marring cap. Available in lengths that result in the following deck heights: 8" (203 mm), 16" (406 mm), 24" (610 mm), 32" (813 mm) and 40" (1016 mm).
  • Adjustable telescopic legs feature a threaded leveling foot finished with a rubber pad and non-rattling telescopic adjustment secured with a quick-release pin and jam nut. Available in lengths that result in the following deck heights: 16"-28" (406-711 mm), 24"-40" (610-1016 mm) and 30"-54" (762-1372 mm).
  • Custom leg sizes are available.
  • Wood blocking is recommended for soft ground surfaces.

Accessories

Staging Universal Deck & Rail Cart

  • 113K001 85 lb (38 kg). Fits through a 32" (813 mm) door.
  • Holds six StageTek rectangular decks (without accessories) or six StageTek guardrails.
  • Decks and guardrails can be mixed on the same cart.
  • Heavy-duty, non-marring locking casters. Ratcheting nylon safety strap.

Adjustable height stairways

  • Stairways feature a hook bracket to function with StageTek decks.
  • Stairs feature aluminum extruded treads and include permanent handrails on both sides.

Guardrails

  • Guardrails comply with IBC code requirements for loading.
  • Guardrails can function as a chair stop Guardrails are 42" (1067 mm) high with a black powder-coat paint finish.
  • Guardrails clamp to the stage deck without the need for tools.
  • Standard Guardrails
    - Feature two uprights and three cross bars; optional infill panels can be added that comply with the IBC 4" (102 mm) sphere code
    - 3' (914 mm) 40 lb (18 kg)
    - 4' (1219 mm) 44 lb (20 kg)
    - 6' (1829 mm) 50 lb (23 kg)
    - 8' (2438 mm) 55 lb (25 kg)
  • Round Picket Guardrails
    - Feature 3/4" (19 mm) round vertical pickets that comply with the IBC 4" (102 mm) sphere code
    - 3' (914 mm) 41 lb (19 kg)
    - 4' (1219 mm) 50 lb (25 kg)

Clamps, Connectors and Braces

  • Optional retention clips for leg storage mount under the deck to provide retained leg storage.
  • A variety of metal leg-to-leg, leg-to-deck, overlap and anchor brackets are available.
  • Stabilizing braces are recommended for heights 40" (1016 mm) and above.

Backdrop and Closure Panels

  • Drapery is available in heights to match the staging elevation and in a wide variety of colors.
  • 100% fire retardant woven polyester attaches with hook and loop fastening strips.
  • Backdrop frame attaches to guardrails and positions a drapery 8' (2438 mm) above the stage. Available in 4' (1219 mm), 6' (1829 mm), and 8' (2438 mm) widths.
  • Solid side and front closures are ideal for seated riser systems. Constructed of ¾" (19 mm) thick group 1 veneered plywood with various surface options available. Edges are finished in a thermofused black edge band. Connects to the rail without tools via an extruded PVC clip running the length of the closure.

Common Uses

  •  Staging: Flat, multi-level, graduation
  •  Seated Risers
  •  Tiered Audience Seating
  •  Runways
  •  Speaker/Camera Platforms
  •  Corporate Events
  •  Displays

Literature

Click here for additional architectural tools and drawings



Videos

More Information
Step Count 3-Step
